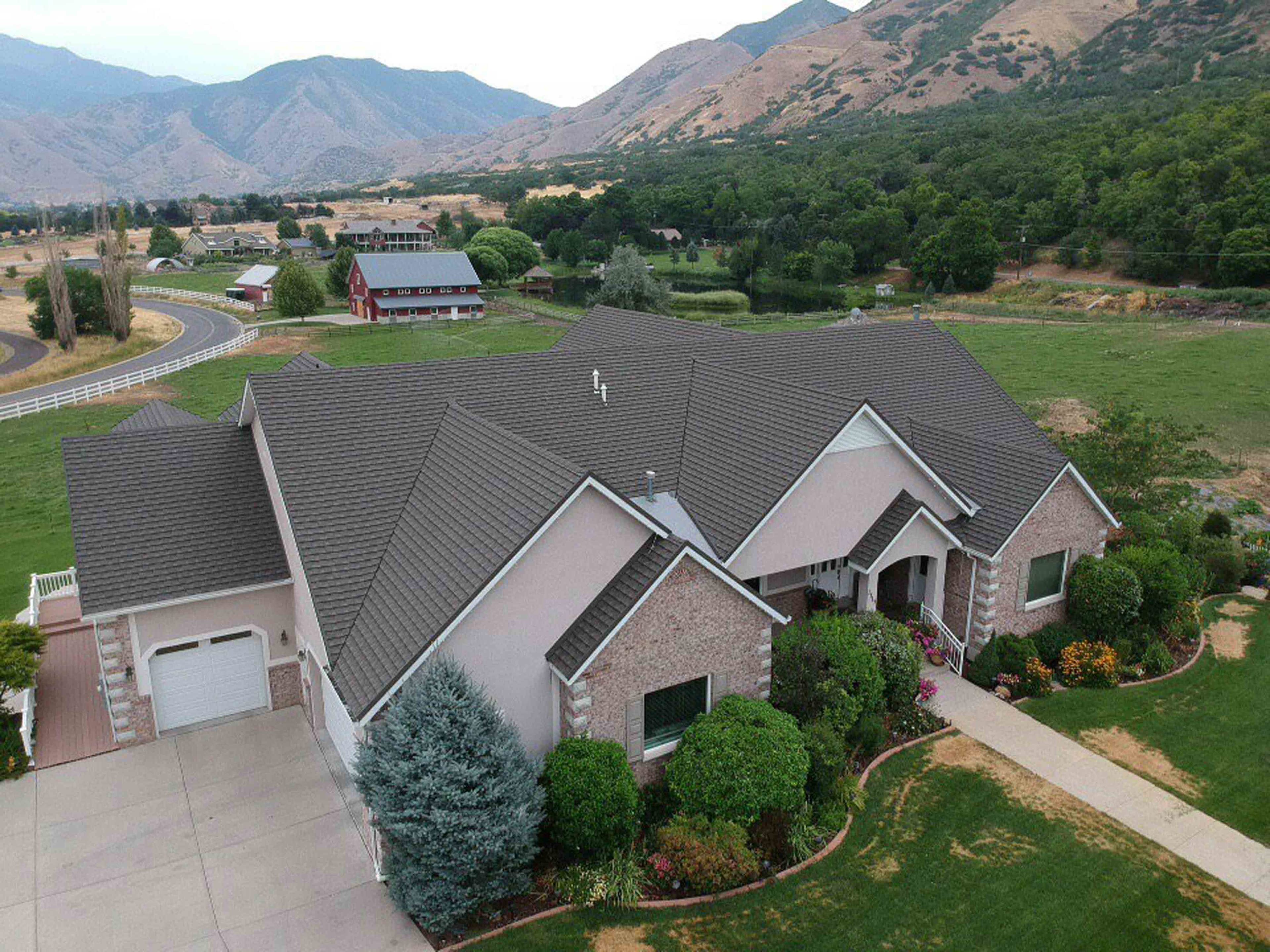

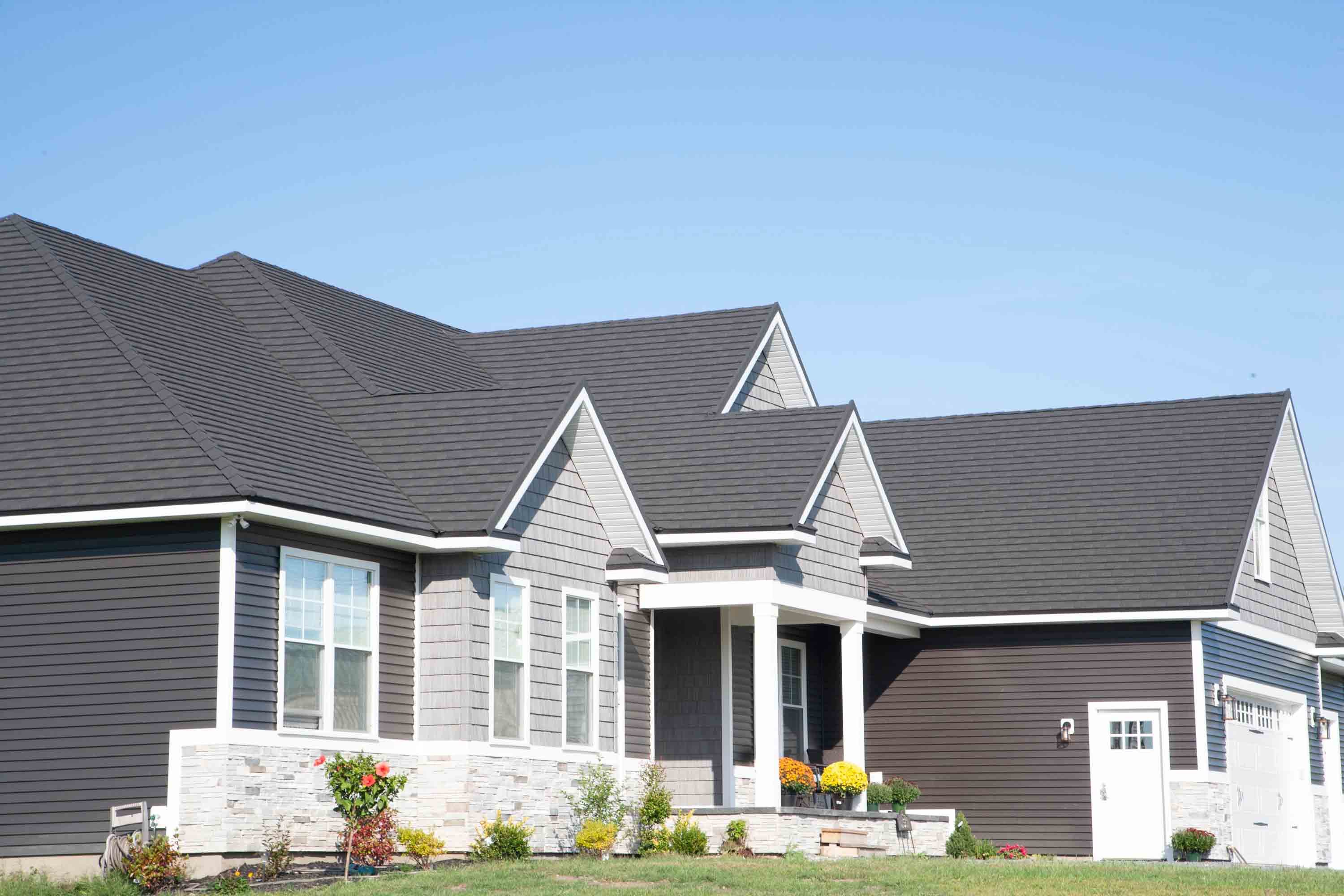

Our CF Shingle has been specifically designed for the North American market to resemble the look of traditional Asphalt Shingles but without the inherent ongoing issues that many home owners face. This low profile Stone Coated Steel panel, comes with patterns of shading and colours that reflect the popular styles but with the bonus of a far superior serviceable life.With our world-first fully Concealed Fastening (CF) system, screws are completely hidden from sight and the elements, delivering the ultimate combination of beauty and weathertightness. Our unique design allows us to overlay our CF Shingle products over existing Asphalt Shingles roofs.
CF Shingle
Textured
-

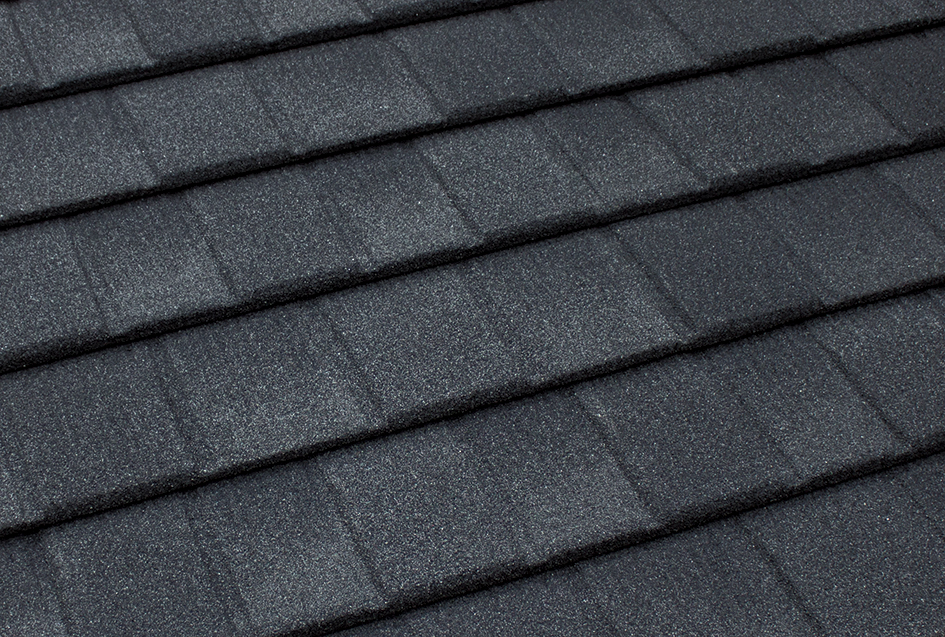

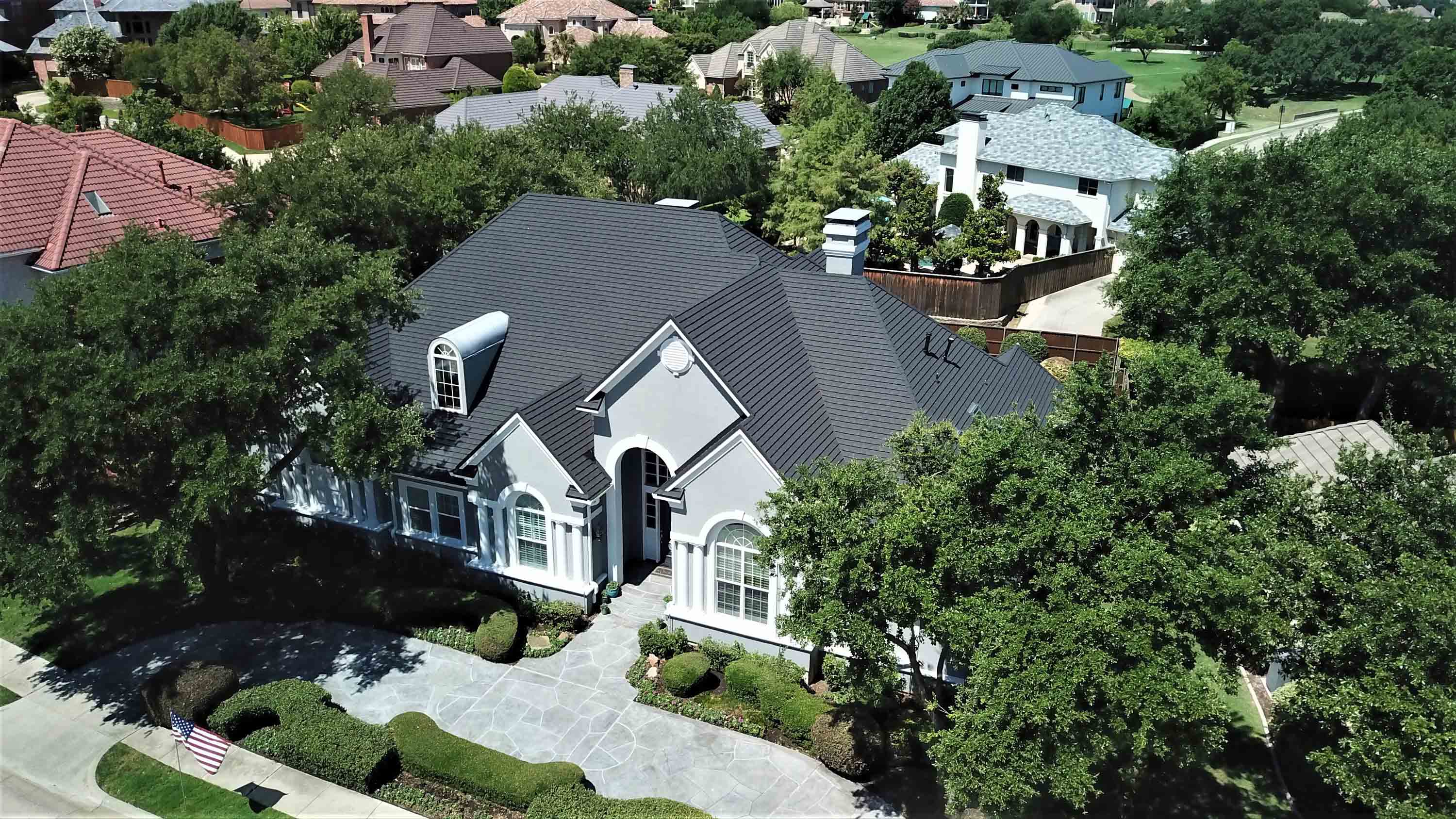

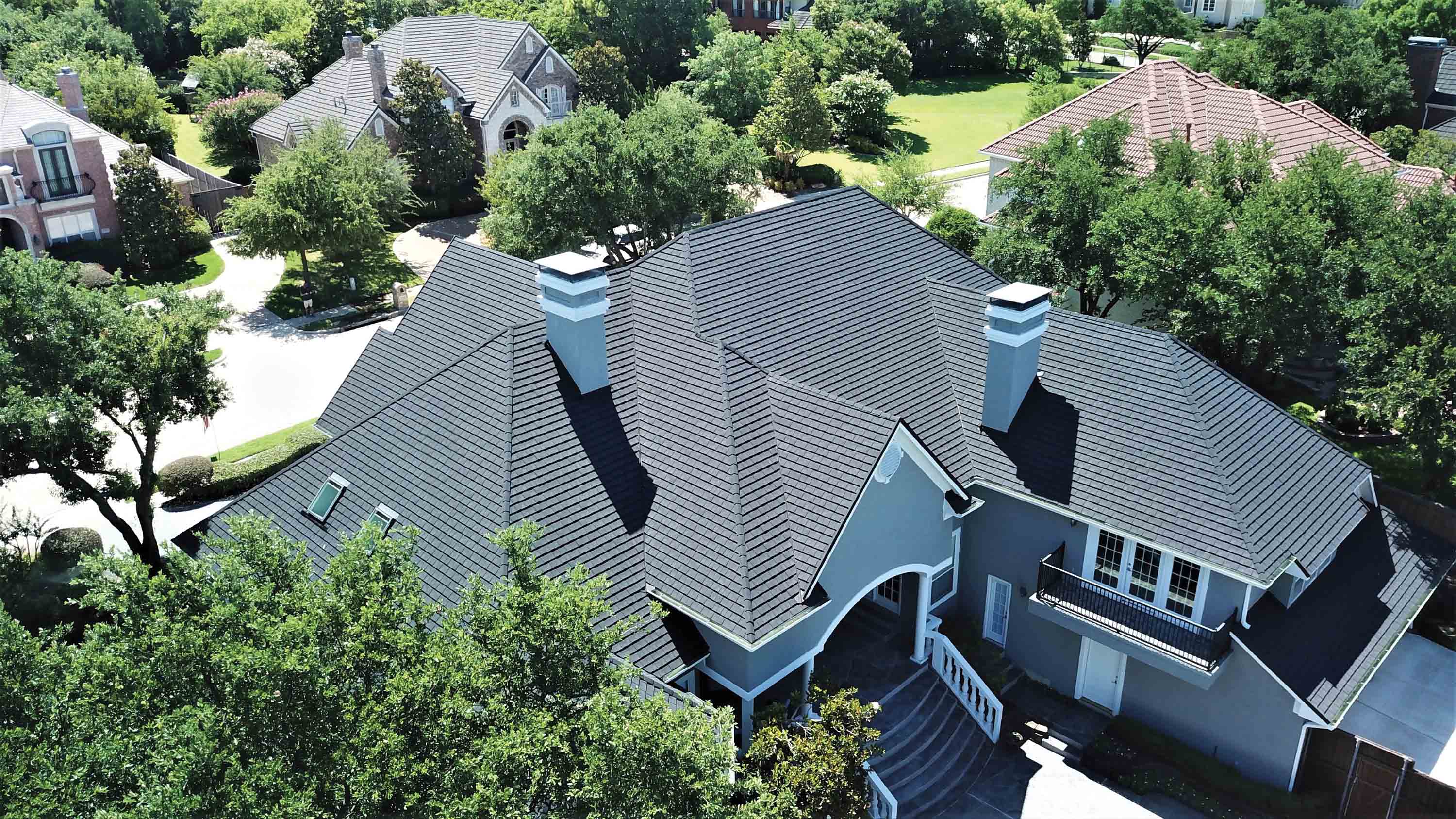

Charcoal Blend
-

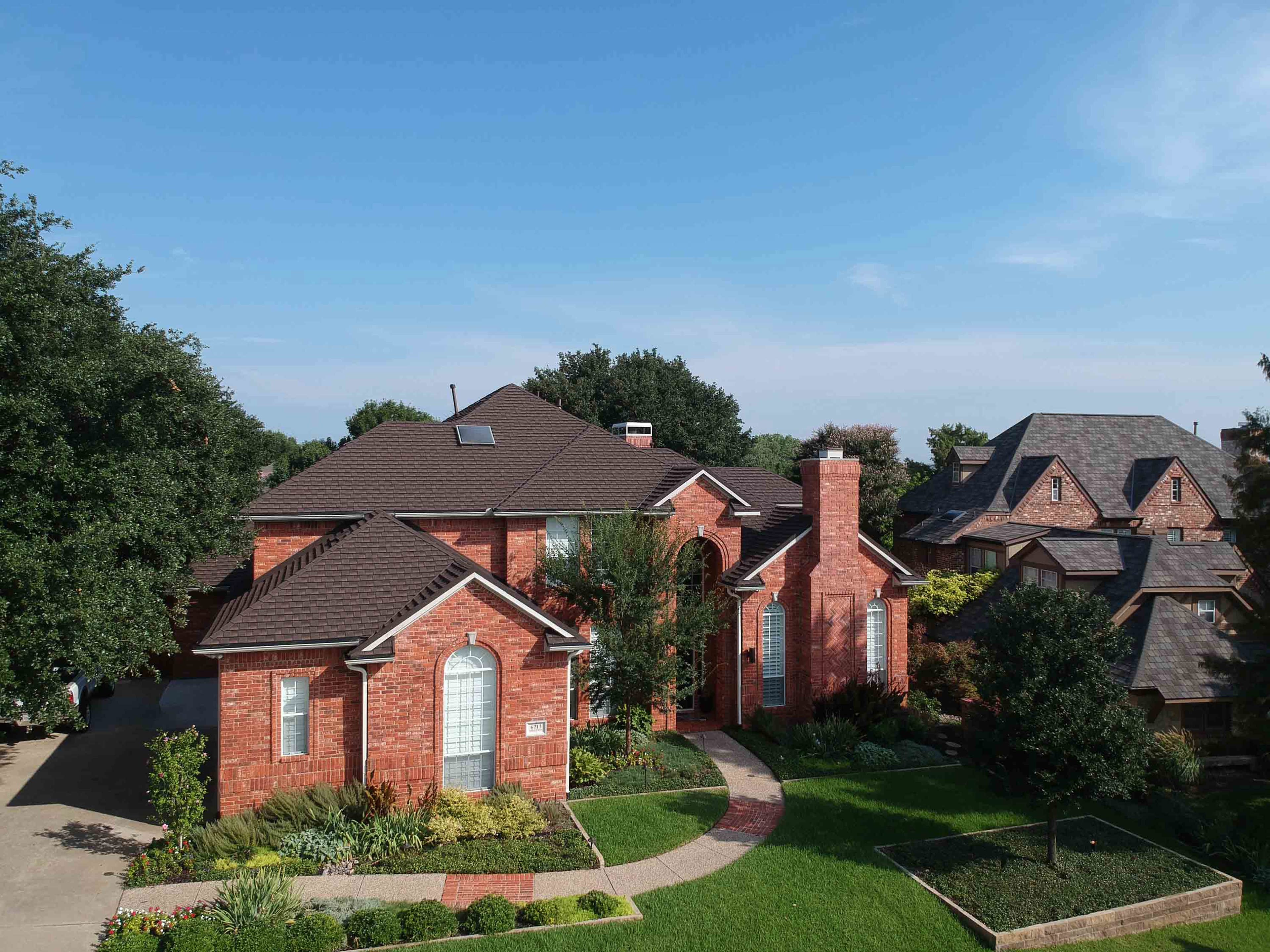

Barkwood
-

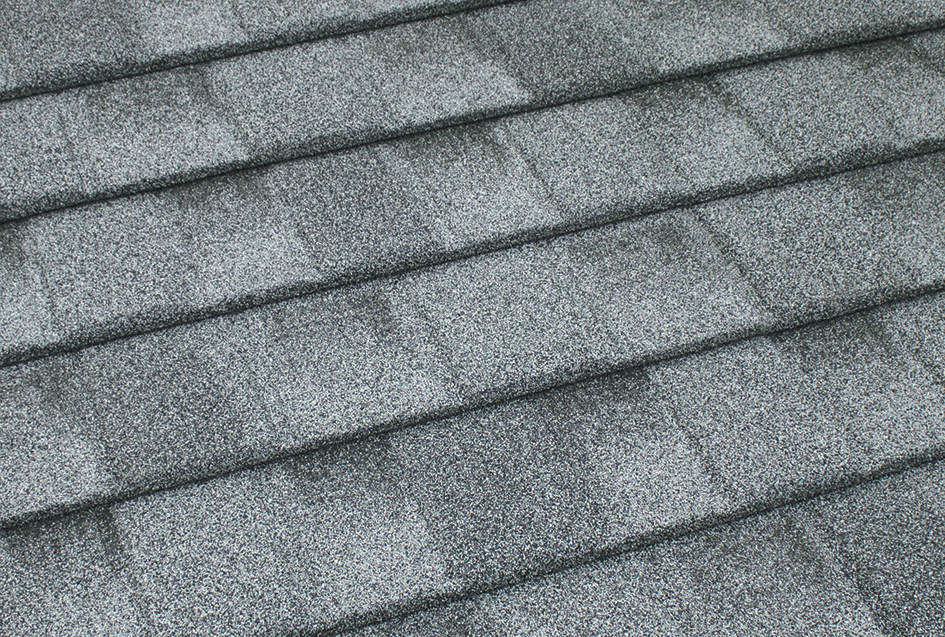

Arctic Grey
-

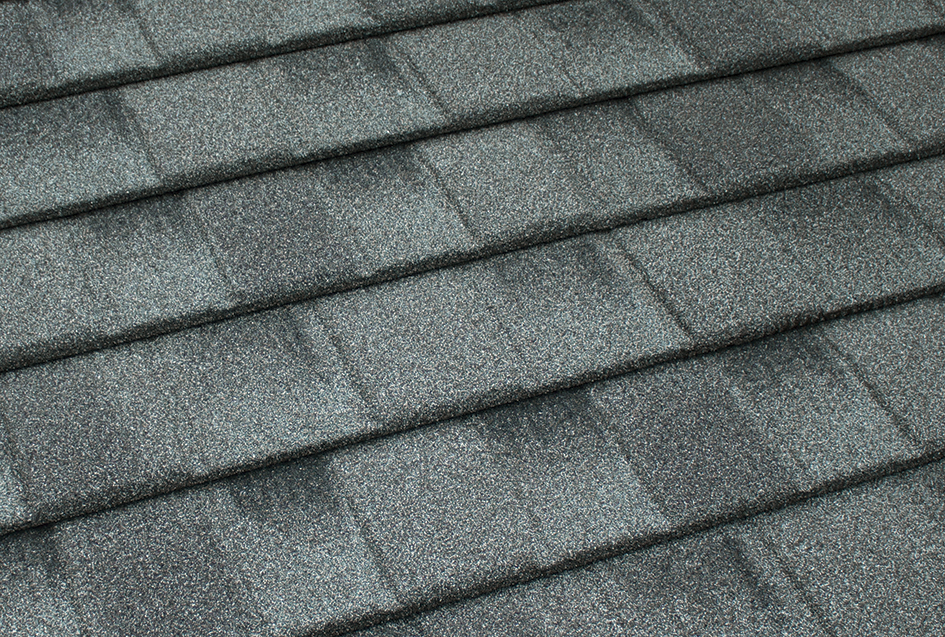

Estate Grey
-

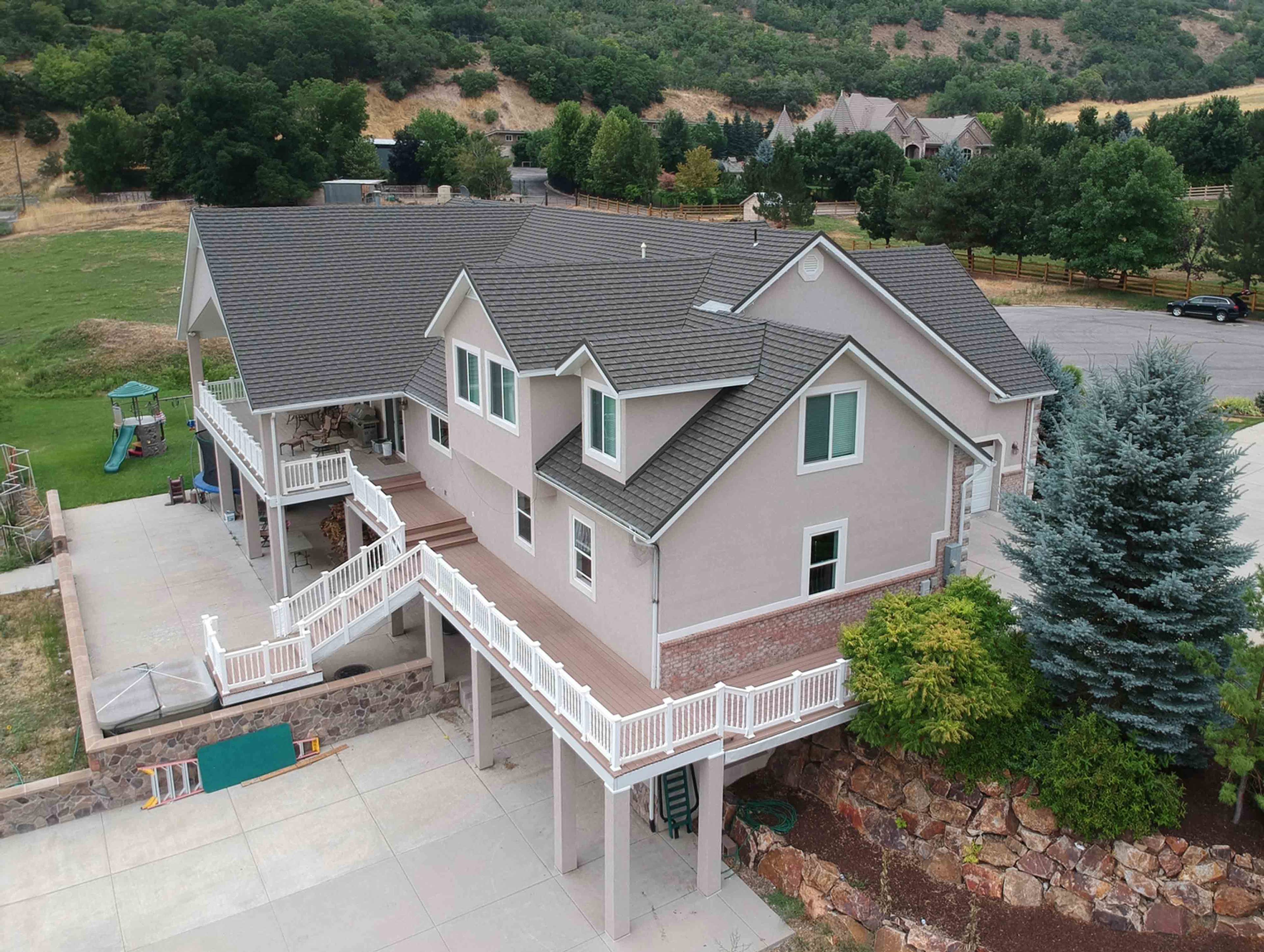

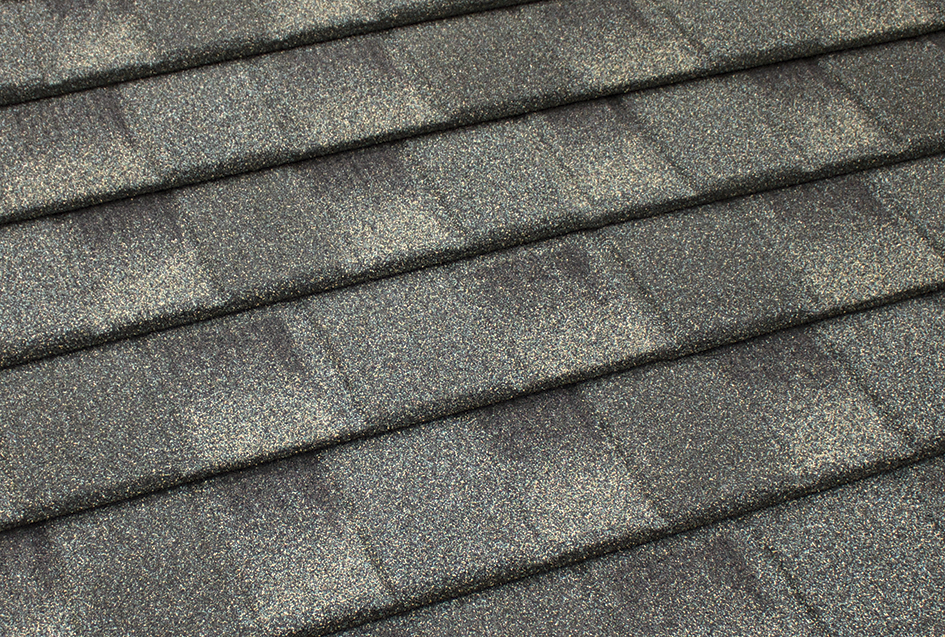

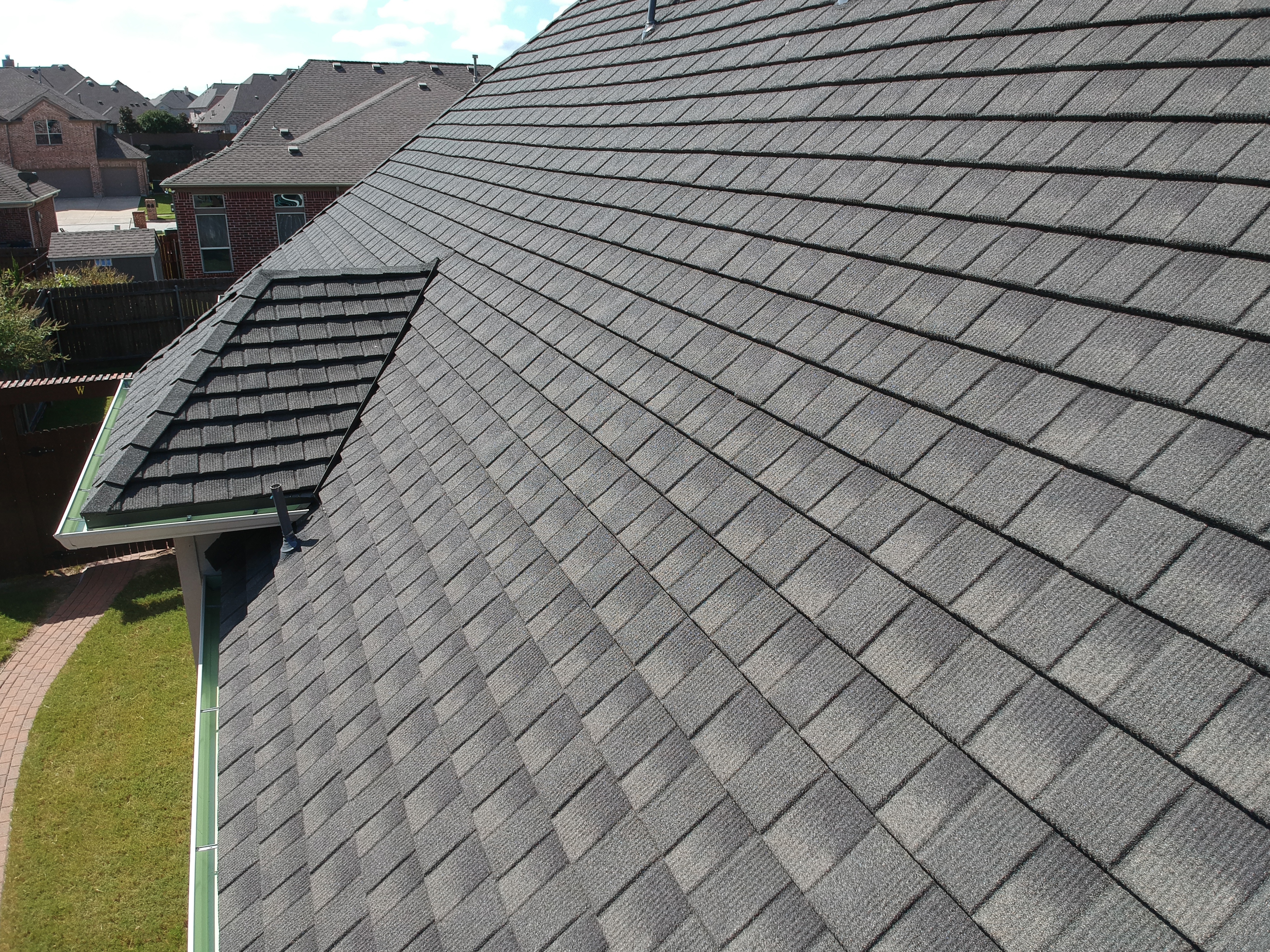

Oakwood
*Colors are as close to the actual products as possible. There may be slight variations due to screen settings. Due to the natural stone nature of our textured coatings, slight color variations can be expected.
Product Specifications
- Overall Length
- 1335 mm
- Length of cover
- 1260 mm
- Width of cover
- 370 mm
- Roof cover / Tile
- 0.46 m
- Tiles / m2
- 2.15
- Weight / Tile
- 3.5 kg
- Weight / m2
- 7.5 kg
- Minimum roof pitch
- 15 degrees
Technical documents
-
CF Shingle - Change of Pitch Detail -
CF Shingle - Fascia / Eave Detail -
CF Shingle - Ridge Detail -
CF Shingle - Apron Detail - Parallel Flashing -
CF Shingle - Apron Detail - Tranverse Flashing - View All Documents
Tilcor performance guarantees
Tilcor's textured finish provides added protection by embedding stone granules in an acrylic base-coat. A final clear acrylic over-glaze is applied before being oven cured at 120° C. This extremely durable UV-resistant coating enables Tilcor roofing products to withstand the harshest environments around the world. Tilcor is ISO 9001 accredited and has international tests reports, appraisals and field results confirm our products are 100% waterproof, earthquake safe, fire resistant and able to withstand hurricane-force winds of up to 190kph. A Tilcor roof will not only safeguard your investment but will also give you complete peace of mind because it's backed by a Tilcor Warranty.
